PRODUCT DESCRIPTION

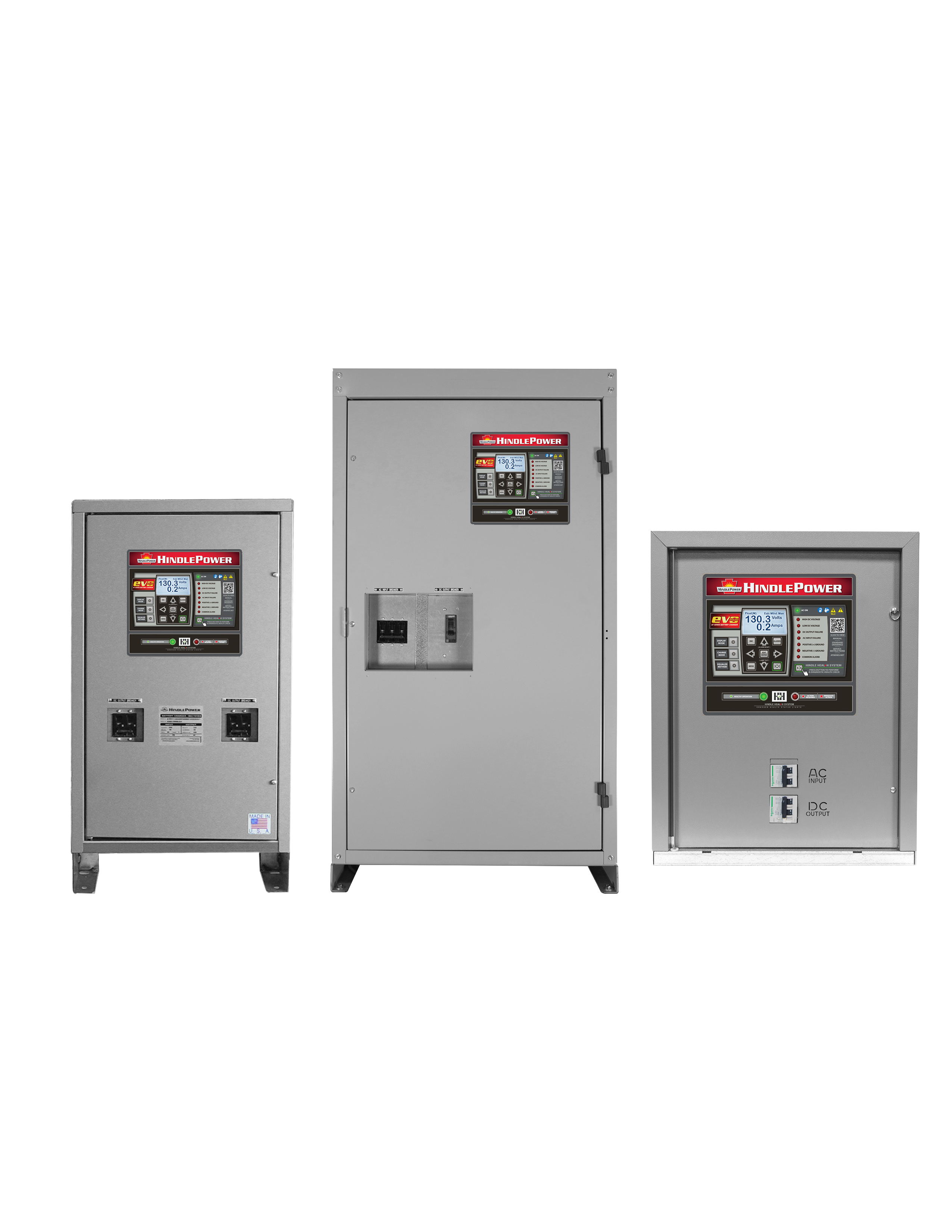

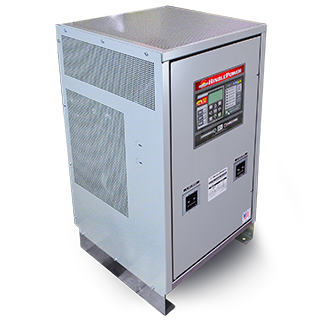

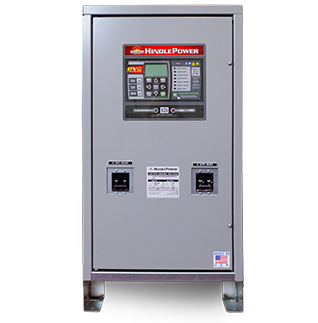

HindlePower’s AT Series Battery Chargers have been the industry standard in stationary utility applications for over 40 years. As the demand for full system reliability increases, our products have evolved to include powerful diagnostics to better assess the health of your charging system. ATevo represents the next generation of our AT Series product line. It is designed and manufactured with the same high quality and reliability you've come to expect from HindlePower. ATevo’s built-in Hindle Health System acts as both a configuration verification and a self-diagnostic tool to ensure your dc system reliability. Not only is ATevo equipped with the same standard AT Series Charger features, but it is also loaded with a host of alarms and diagnostics designed to better identify both potential dc threats and real-time dc issues making it the clear choice for utility battery charger applications.
- AC Input Voltage: 120, 208, 240, 480 | | 220, 380/416 @ 50-60Hz
- AC Input Voltage Tolerance: +10%, -12%
- AC Input Frequency Tolerance: ±5%
- AC Input Efficiency: 85-90% typical for 130Vdc at 50-100% load
- DC Output Voltage Ratings: 24, 48, 130 or 260* Vdc nominal (*260Vdc - 6,12 Adc only )
- DC Output Continuous Rating: 110% rated current at maximum equalize voltage at -10 to +50ºC
- DC Output Transient Rating: Per NEMA PE-5
- DC Output Current Limit Adjustment Range: 50% to 110% rated output
- DC Output Voltage Regulation: ±0.25% for line, load and temp. variations (*Regulation at max. extended equalize voltages may not meet ±0.25%)
- Electrical Noise: 32dBrnc
- DC Output Ripple: 24/48Vdc: Filtered on battery 30mVrms | Filtered off battery 1% Vrms | Battery Eliminator 30mVrms
- DC Output Ripple: 130Vdc: Filtered on battery 100mVrms |Filtered off battery 2% Vrms | Battery Eliminator 100mVrms | Super Eliminator 30mVrms
- DC Output Ripple: 260Vdc: Filtered on battery 200mVrms | Filtered off battery 2% Vrms | Battery Eliminator 200mVrms
- DC Output Surge Withstand Capability: Designed to meet IEEE-472, ANSI C37.90a
- 3rd Party Approvals: NEMA PE5 | CSA | FCC | CE
- Seismic Certification: IEEE 693/IBC CBC
- Operating Ambient Temperature: 14°F to 122°F (-10°C to 50°C) w/o derating
- Operating Altitude: 3300 feet (1000 meters) above sea level without derating
- Relative Humidity: 0% to 95% (without condensation)
- Audible Noise: Less than 65 dBA at any point 5ft (1.5m) from any vertical surface of enclosure

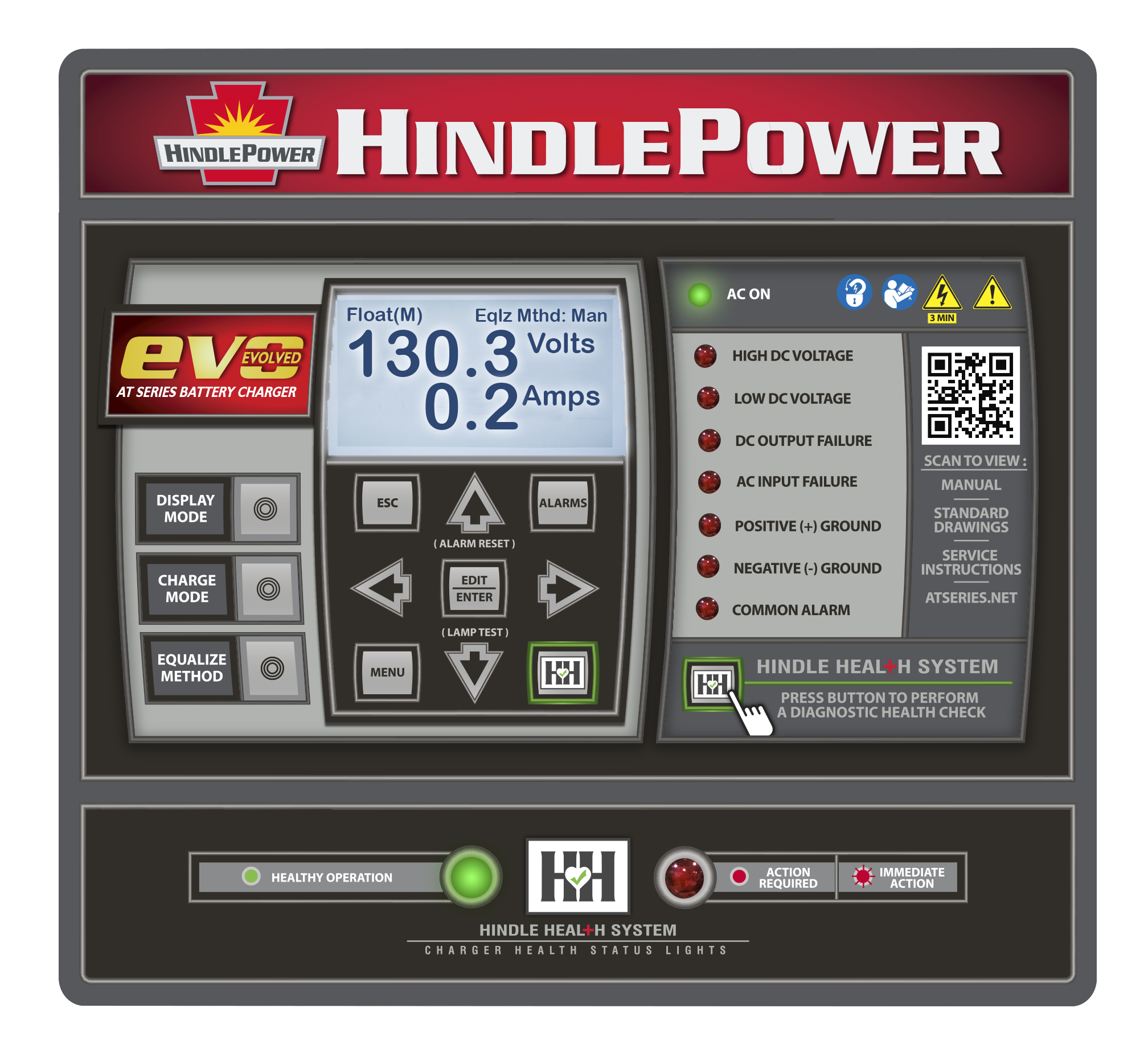

- Monitoring: HindleHealth® System
- Operations Manual (6-25 Adc, Single Phase Inputs)
- Operations Manual (30-100Adc, Single Phase Inputs)
- Operations Manual (All Three Phase Inputs)
- Product Brochure
- Product Specification
- Product Specification (PDF)
- EVO Quick Start-Up (PDF)
- Standard Product Warranty (PDF)
- AC Input Current Ratings
- 3rd Party Agency Approvals
- Operations Manual (6-25 Adc, Single Phase Inputs) JA5011-51
- OPERATING & SERVICE INSTRUCTIONS
- Operations Manual (30-100Adc, Single Phase Inputs) JA5011-52
- Product Brochure JF5054-00
- Input Current and Circuit Breaker Ratings JF5072-01
- Product Specification JF5061-00
- Product Specification (PDF) JF5061-00
- EVO Quick Start-Up (PDF) JC5020-51
- Standard Product Warranty (PDF) JF5001-00
- 3rd Party Agency Approvals JF5039-00
- EVO Communications Manual JA0102-54
- Forced Load Sharing Instructions JA5054-50
