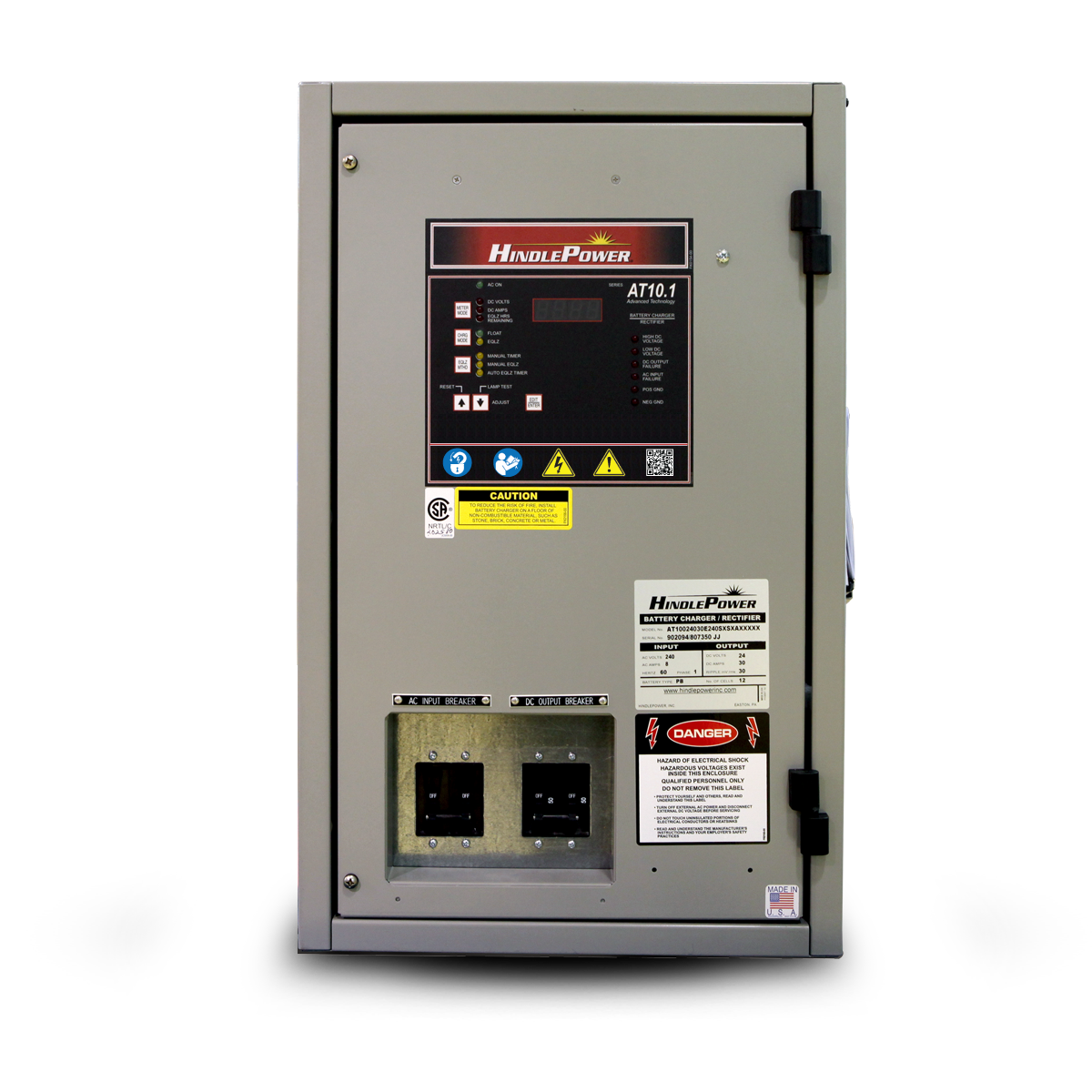

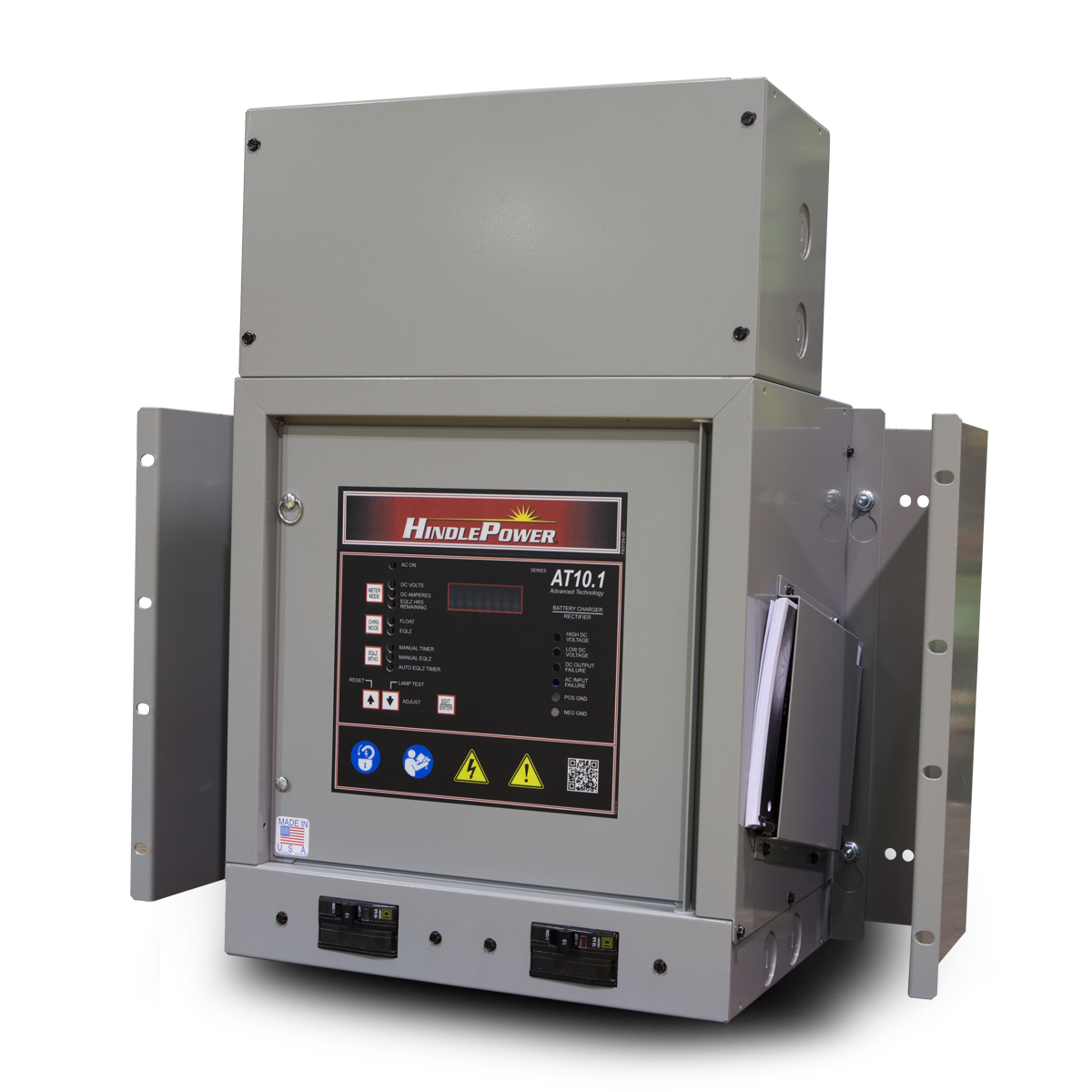

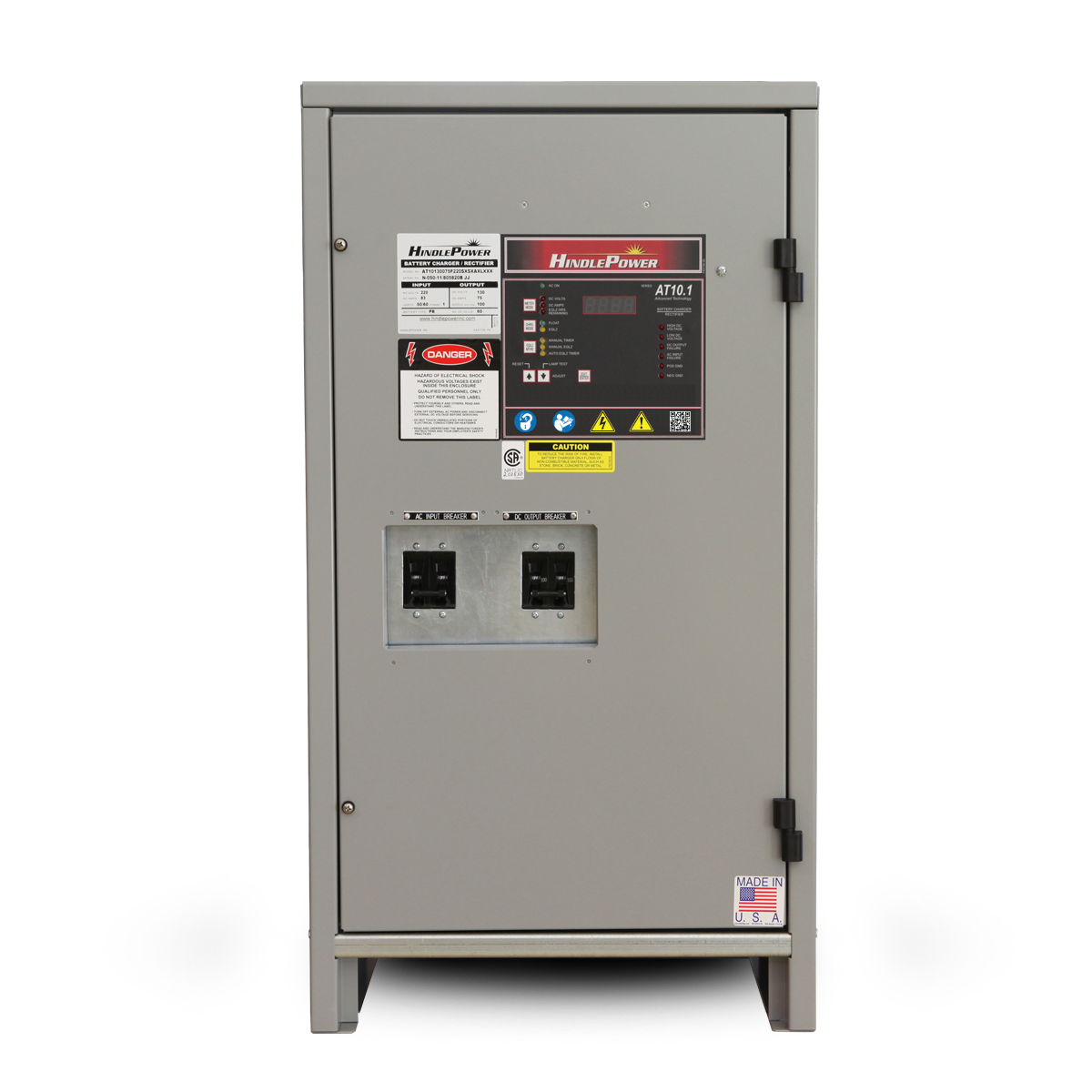

AT10.1 Series Stationary Float Battery Charger
Manufacturer
HindlePower
Product Type
Battery Chargers
Technology
Industrial SCR Chargers
PRODUCT DESCRIPTION
The AT10.1 and AT30, are the industries most trusted and easiest operational single and three phase float battery chargers. Proven reliability and ease of set up and operation have made this series the ‘gold standard’ for all stationary battery charging applications. Input voltage from 120-600Vac, 50/60Hz DC Voltages of 12, 24, 48 and 130Vdc Output current from 6-100A SCR based rectification technology Microprocessor / Digital Control CSA-NRTL/C Certified
- AC Input Voltage (Group 1): 120, 208, 220, 240, 380/416, 480, 550-600 @ 60 Hz
- 120, 208, 220, 240, 380/416, 480, 550-600 @ 60 Hz
- AC Input Voltage (Group 2): 120, 208, 220, 2440, 380, 480, 416, 550-600, @ 50-60Hz
- Input Tolerance: (+10%) (-12%)
- Frequency Tolerance: ±5%
- Efficiency: 85-90% | typical for 130Vdc @ 50-100% load
- Voltage Ratings: 12, 24, 48,130VDC, nominal
- Current Ratings (Group 1): 6, 12, 16, 20, 25
- Current Ratings (Group 2): 30, 40, 50, 75, 100
- Continuous Rating: 110% rated current at maximum equalize voltage at 50ºC
- Current Limit Adjustment Range: 50% to 110% of rated output
- Voltage Regulation: ±0.25% for line, load and temp. variations. (*Regulation at max. equalize voltages may not meet ±0.25%)
- Ripple (12/24/48Vdc): Unfiltered on battery 1%Vrms | Filtered on battery 30mVrms | Filtered off battery 1% Vrms | Battery Eliminator 30mVrms
- Ripple (130dc): Unfiltered on battery 2%Vrms | Filtered on battery 100mVrms | Filtered off battery 2% Vrms | Battery Eliminator 100mVrms
- Electrical Noise: 32dBrnc
- Surge Withstand Capability: Meets IEEE-472, ANSI C37.90a
- Operating Ambient Temperature: 0ºF to 122ºF | (-18ºC to 50ºC) | without derating
- Operating Altitude: 3300 feet (1000 meters) above sea level without derating
- Relative Humidity: 0% to 95% without condensation
- Audible Noise: Less than 65 dBA at any point 5ft (1.5m) from any vertical surface of enclosure
- Third Party Approvals: NEMA PE5-1996, PE 5-1997(R2003) | NEMA-1/IP20 type standard enclosure | CSA C22.2
- Third Party Approvals (cont.): NRTL/C - UL 1012/UL 1564 | Seismic qualified | FCC | CE | ABS
- Product Brochure
- AT10.1 Operation Manual Group 1 (6-25Adc)
- AT10.1 Operation Manual Group 2 (30-100Adc)
- Product Specification (PDF)
- Product Specification (DOC)
- AT Series Quick Setup Sheet
- AC Input Current Ratings
- Third Party Agency Approvals
- Strandard Product Warranty
- Communications Module Operation Manual
