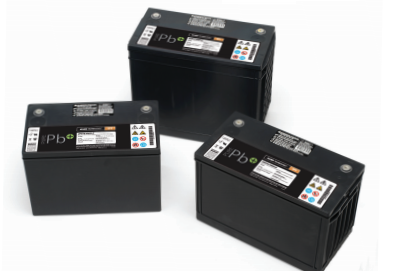

C&D Pure Lead Plus Series

Pure Lead Plus Batteries

Manufacturer

C&D

Product Type

Lead Acid Batteries

Technology

VRLA (AGM) Blocs

PRODUCT DESCRIPTION

C&D Technologies’ UPS Pure Lead Plus batteries provide the same benefits from the High Rate Max Series plus the added benefits of C&D’s proprietary Pure Lead Plus Technology. Pure Lead Plus batteries provide superior performance and extended life at elevated ambient temperatures for use were endurance counts to ensure your business systems run uninterrupted.

Specifications Downloads

The UL V-2 Polypropylene case is extremely durable and reduces water loss, especially in batteries which are in service for 5 years or more.
Flame retardant polypropylene case and cover compliant with UL94 V2.
Patented Long Life Alloy having the lowest calcium levels in the industry – minimizing grid growth, reducing gassing, and extending battery life.
Patented UL Recognized Flame-arresting vents in each cell for safety and long life.
Thermally welded case-to-cover bond to eliminate leakage.
Can be operated in any orientation. Upright, side or end mounting recommended.

Terminal versatility – ease of diagnostic readings with C&D Ohmic Ring®
Reduced headspace driving higher energy density, in cabinet or rack applications
True Front Access available: innovative front terminal design maximizing energy density with direct connect extrusion fusion weld technology
Larger grid lug – 25% wider
Computer generated optimized radial grid design for the most efficient power channeling out of the grid
Thicker wires near post to maximize power transfer from active material during high rate discharges
Optimized grid alloy for extended life in UPS applications
Thin plate design maximizes surface area for higher power density
Not restricted for surface transport – Classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189.
Not restricted for water transport – Classified as non-hazardous material per IMDG Amendment 27.
Not restricted for air transport – Complies with IATA/ICAO Special Provisions A67.
Complies with UL1778, 924, 1989 AND 94 V-2, BS6290-4, IEC-896-2.
UL-recognized component
