Request A Quote

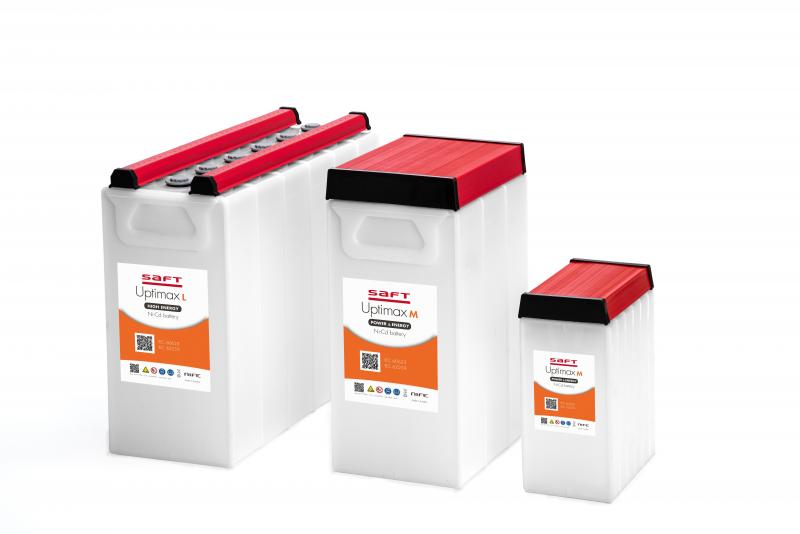

Uptimax Batteries

Manufacturer
Saft
Product Type
NiCad Batteries
Technology
NiCad Sealed Cells

PRODUCT DESCRIPTION

The 1st Ni-Cd battery solution for plug and play replacement of lead-acid. The latest generation of Uptimax nickel pocket plate battery technology is the perfect fit to replace lead-acid batteries thanks to its 1.39 V/cell single level charge. When a fast recharge is needed, 95% State-Of-Charge (SOC) in 8h can be reached at 1.45 V/cell for minimal downtime and optimal availability. These improvements come in addition to the key existing benefits of the Uptimax range. It combines maintenance-free* operation with total reliability for industrial backup power applications, high electrical performance, long operational life of over 20 years and a low TCO (total cost of ownership). Vital support to critical systems Uptimax battery is designed to form the heart of Uninterruptible Power Supply and backup power systems that operate in the event of a loss of the main power supply to facilitate the safe shutdown of processes, safeguard computer data and provide bridge to standby power. Typical power backup applications include UPS, substation switchgears, process control systems, emergency lighting, fire alarms and security systems.

  • UP1 L energy range (L type)
  • For low-rate discharges over long periods between 1 and 100 hours
  • Capacity range (C5 rate): 15 to 1700 Ah
  • Range of: 34 cells
  • Single level charge voltage: 1,39 V/cell
  • Two level charge voltage: 1,39 V/cell float, 1,45 V/cell boost
  • Recharge: 95% SOC in 8 hours @ 1,45 V/cell, 0,2 C5A
  • No topping up needed when charged according to specification
  • UP1 M medium power range (M type)
  • For mixed loads with low and high discharge rates, between 30 minutes and 3 hours
  • Capacity range (C5 rate): 8 to 1330 Ah
  • Range of: 38 cells
  • Single level charge voltage: 1,39 V/cell
  • Two level charge voltage: 1,39 V/cell float, 1,45 V/cell boost
  • Recharge: 95% SOC in 8 hours @ 1,45 V/cell, 0,2 C5A
  • No topping up needed when charged according to specification
