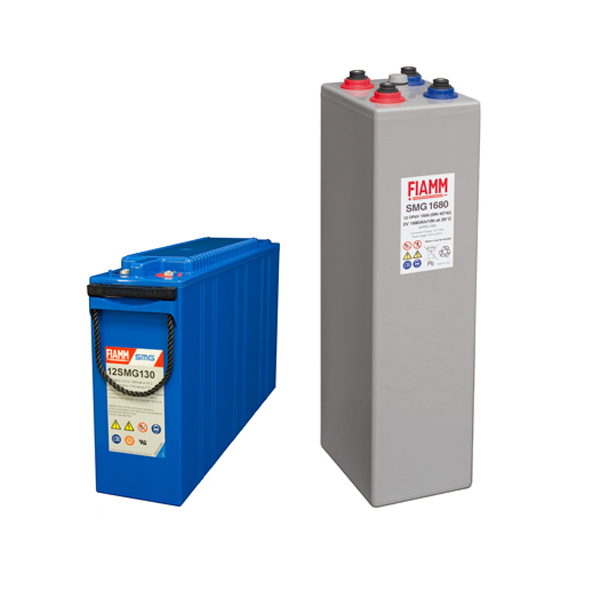

SMG OPzV Batteries
FIAMM
Lead Acid Batteries
VRLA (Gel) 2V Cells
PRODUCT DESCRIPTION
The FIAMM SMG tubular GEL range is designed for applications where performance and operating conditions are critical. They are maintenance-free and combine the benefits of a gelled electrolyte which provides longer life and a wider temperature operating range. The SMG range is made up of 2V cells and 12V blocks. The 2V cells conform to international OPzV standards DIN40742 norm. The range is constructed to provide a high level of robustness and is designed for applications where charge discharge cycles have to be guaranteed with reliability. The range is maintenance-free with a low self-discharge characteristic for periods when batteries may be stored or off float charge. The SMG 2V cell range can be installed horizontally in dedicate d racks saving valuable space . The range is fully eco-friendly with all components being fully recyclable.
- The positive tubular grid is composed of a special alloy (Pb-Sn-Ca) which is die-cast to guarantee high corrosion resistance
- The electrolyte is immobilized into GEL structure due to a special silica binding addition
- Separators have extremely high porosity and provides very low internal resistance
- ABS cases flame retardant and classified to UL94 V0 with LOI >28% standard for 12V and available on request for 2V cells
- The vent plug comprises an exhaust valve and porous flameproof disc for a superior safety
- The metallic threaded insert on terminals ensure the highest conductivity and provides maximum torque retention and easy installation
- The connecting bolt is fully insulated but with probe hole on the top to grant electrical measurements (2V only)
