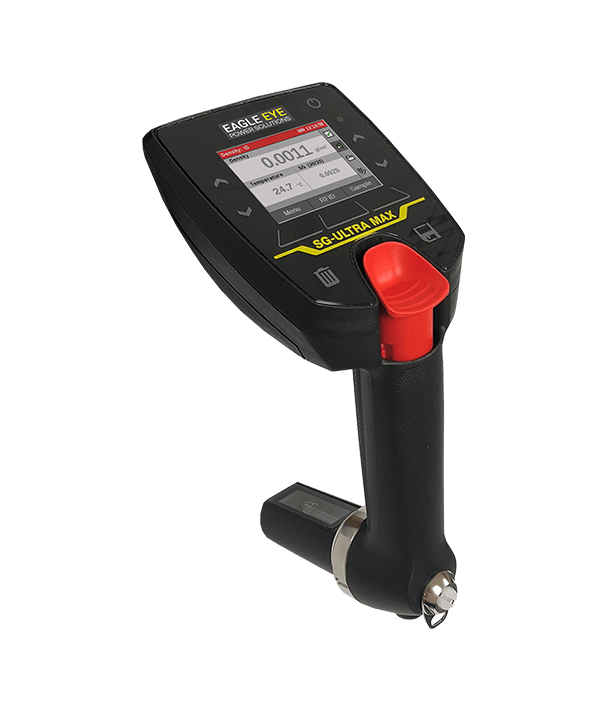

Eagle Eye SG-Ultra Max Plus Digital Hydrometer, Density Meter

Manufacturer
Eagle Eye
Product Type
Other Equipment & Accessories
Technology
Hydrometers

PRODUCT DESCRIPTION

The SG-Ultra Max Plus battery hydrometer measures the density and density-related values of your sample within seconds. Results appear on the large color touch screen and are ready for storage, printout or export to a PC. The lightweight and robust design enable on-site operation in a wide range of environments. Completely sealed, pump spills do not enter the instrument.

The design features a leak-proof housing for operation in industrial and field applications including battery testing for utilities and telecoms, food & beverage testing, quality control, biotechnology, and many more. Supported measuring units include: density, density at reference temperature, specific gravity, alcohol, API, °Baumé, °Brix, and ten programmable custom functions to ensure your measurement requirements.

    • Measurement Range: Density: 0.000 – 3.000 g/cm3
    • Sample Temperature: 01 – 40 °C (321 – 104 °F)
    • Viscosity: 0 – 1,000 mPa
    • Accuracy: Density: 0.001 g/cm3
    • Temperature: ±0.2 °C (±0.4 °F)
    • Resolution: 0.0001 g/cm3
    • Repeatability: 0.0005 g/cm3
    • Minimum Sample Volume: 2 mL
    • Communication: Bluetooth, RFID
    • Display: Backlit color with capacitive touch controls
    • Internal Storage: 1024 Results
    • Operating Environment: -10 – 50 °C (14 – 122 °F)
    • Power Requirements: (3) 1.5 V LR06 AA Alkaline Batteries
    • Dimensions: 245 x 103 x126 mm (9.6 x 4 x 5 in)
    • Weight: 660 g (23.3 oz)
    • (1) Sample must not freeze in the measuring cell
    • Accuracy: 99.999%, tests density and temperature simultaneously
    • User-Friendly: Compact, lightweight, and allows for one-hand measurement, automatic temperature compensation
    • Robust & Rugged: Comes with protective carrying case. Measuring cell can be exchanged and replaced if necessary
    • Bluetooth Communication: Data exchange with a PC and data export to a printer
    • Storage: up to 1,024 total measurement results including time stamp and sample ID
