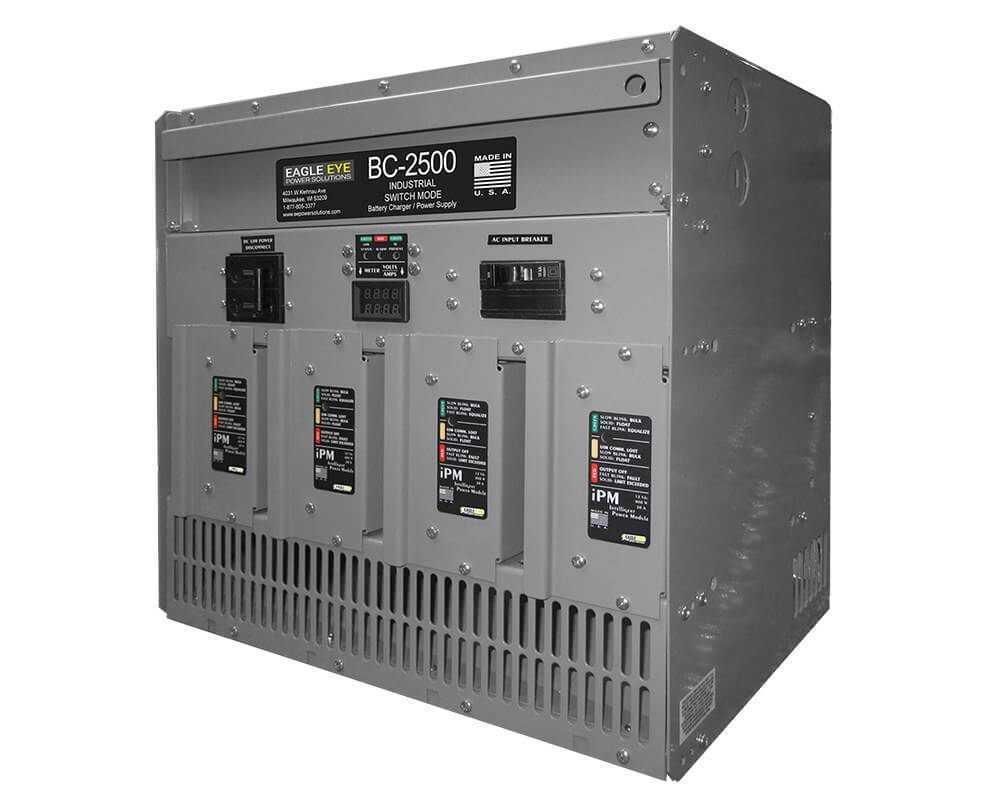

BC-2500 Modular Float Battery Charger & Power Supply

Manufacturer
Eagle Eye
Product Type
Battery Chargers
Technology
Switchmode Chargers

PRODUCT DESCRIPTION

The BC-2500 is a stationary float Battery Charger based on a high efficiency modular, redundant platform design. It utilizes high availability with uptime architecture. Available in 480W or 400W with hot-swappable Intelligent Power Modules (iPMs) which are available at the following ratings:

  • 24V with ranges 10 – 40 VDC, 0-80 ADC
  • 48V with ranges 30 – 61 VDC, 0-80 ADC
  • 130V with ranges 75 – 150 VDC, 0-64 ADC

Multiple iPMs in a single chassis provide redundancy (N+1, N+2, etc.) and will continue to operate independently if the user interface module (UIM) fails. This ensures maximum reliability for critical uptime applications. Our chargers are compatible with a range of battery types including VLA, VRLA, Ni-Cd with user defined alarms to suit each battery type.

    • Alarms: Individually enabled/disabled assigned a delay, assigned a priority, assigned to the summary alarm relay
    • Alarm Relay: Form C, dry contact
    • Mounting: Wall, shelf, floor, EIA 19-inch and 23-inch rack (front or rear)
    • Communication: Ethernet; 10/100BASE-TX; auto crossover, auto MDI-X; RJ45 connector; support for TCP/IP, NTP, and SNMP Traps; internal web server; ability to be used for networked comm or direct comm (direct connection to a laptop)
    • AC Input: Voltage Range, Rated: 100 – 240 VAC ; Voltage Range, Operating: 90 – 264 VAC, < 100 VAC: Reduced Power ; Frequency, Rated: 50 – 200 Hz ; Frequency, Operating: 45 – 205 Hz ; Phase: Single-phase ; Efficiency: > 91%, 120 Vac, full load; > 93%, 240 Vac, full load; ; Power Factor: > 0.98, 120 Vac, full load; > 0.96, 240 Vac, full load ; Protection: Current limit, surge, transient, under voltage, over voltage
    • DC Output: Voltage Range: 24 VDC: 10 – 40 VDC, 48 VDC: 30 – 61 VDC ,130 VDC: 75 - 150 VDC ; Power, Maximum, per iPM: 24 VDC: 400 W , 48 VDC: 480 W ; Current, Maximum, per iPM: 24 VDC: 10 A, 48 VDC: 10 A, 130 VDC: 4 A ; Current, Rated, per iPM: 24 VDC: 10 A, 48 VDC: 8.1 A, 130 VDC: 3.3 A ; Protection: Current limit, short circuit, reverse polarity, surge, transient
    • Operating Environment: 12, 24VDC: -40 – 70 °C (-40 – 158 °F), Storage Temperature: -55 – 85 °C (-67 – 185 °F), Humidity Range: 0 – 95%, non-condensing
    • Certifications: UL 1012 and cUL/CSA equivalent; CE certified
    • Low DC output ripple – battery eliminator option standard
    • AC/DC powered UIM for continued operation without AC
    • Heavy-duty steel chassis with high quality conformal coated circuit boards for moisture protection
    • Convection cooled with wide -40 – 70°C (-40 – 158°F) operating range and no fan failure points
    • High energy efficiency of > 93% at 240 VAC and > 91% at 120 VAC and full load
    • Battery temperature compensation with controlled limits
    • Alarms can be individually enabled/disabled, assigned a delay
    • SNMP alarming and NTP date/time sync via Ethernet or Modbus RS-232
    • Optional digital amp/volt meter for 4-Bay models
