EPIC Series Console 2.0
Manufacturer
HindlePower
Product Type
Enclosures
PRODUCT DESCRIPTION

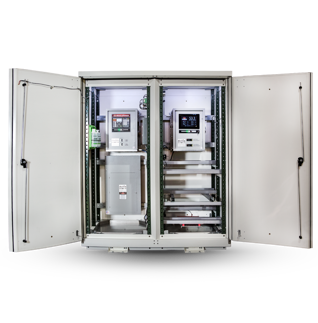

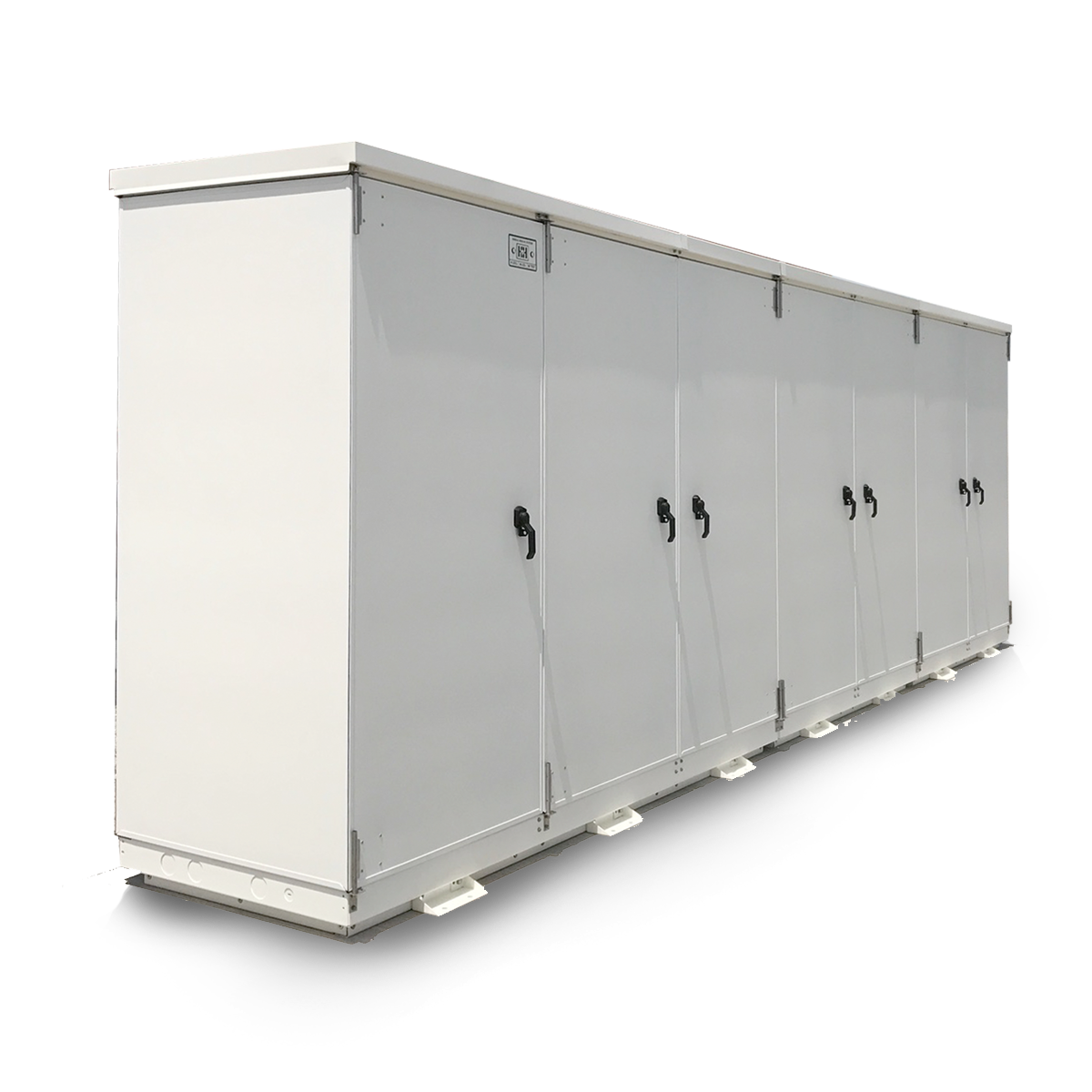

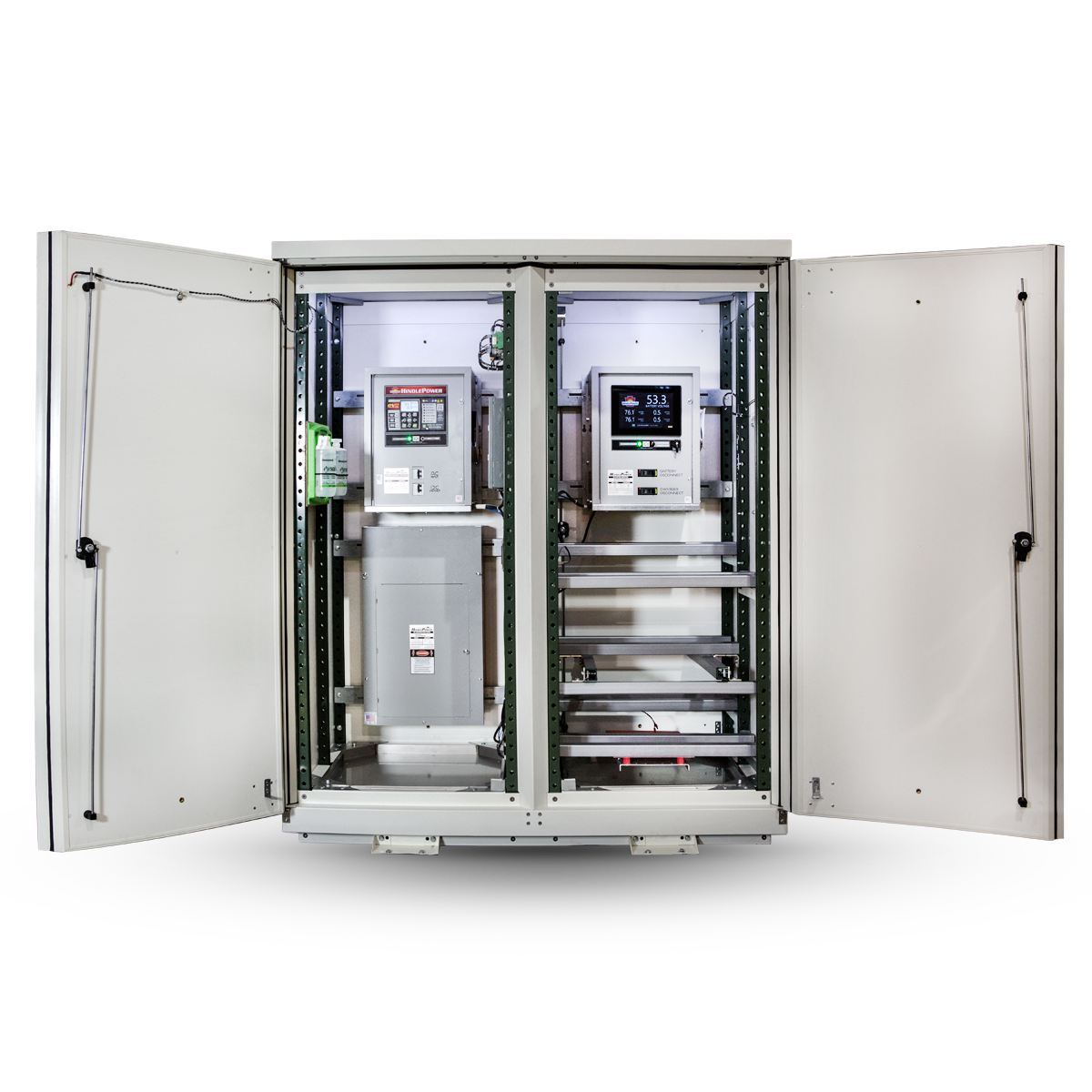

HindlePower’s EPIC Series Console 2.0 is designed to maximize DC system performance and battery life, saving YOU time and money. This NEMA 3R modular enclosure, with built in intelligence, will safely house any combination of batteries, chargers, DC distribution, and/or other ancillary equipment. Equipped with the HindleHealth System, the EPIC Series Console 2.0 will keep your battery at the ideal temperature in the most extreme of environments, giving you peace of mind.
- Height: 83.26"
- Depth: 38.74"
- Width: 38.74" - Unlimited
- Environmental Protection: NEMA 3R
- Safety: IEEE 1635 Ventilation and Thermal Management of Batteries for Stationary Applications
- Monitoring: HindleHealth® System
- Seismic Certification: IEEE 693 'High', CBC 2013, IBC 2012
- Ceiling/Wall Insulation: R12
- Floor Insulation: R26
- Cold Weather (Thermal Performance): 65°F/19°C internal at - 40°F/°C exterior ambient
- Hot Weather (Thermal Performance): 77°F/25°C internal at 122°F/50°C exterior ambient
- Communication: Modbus over Ethernet, Serial
- Exterior Finish: White polyester, powder coat
- Warranty: 5 Year
- Monitoring: HindleHealth® System
- 3rd Party Agency Approvals
- Product Brochure
- Product Specification (PDF)
- Standard Product Warranty (PDF)
- 1 Door Enclosure Outline - NEMA 3RJE5269-02
- 2 Door Enclosure Outline - NEMA 3RJE5269-02
- 3 Door Enclosure Outline - NEMA 3RJE5269-02
- 4 Door Enclosure Outline - NEMA 3RJE5269-02
- 5 Door Enclosure Outline - NEMA 3RJE5269-02
- Product Specification (DOC)
