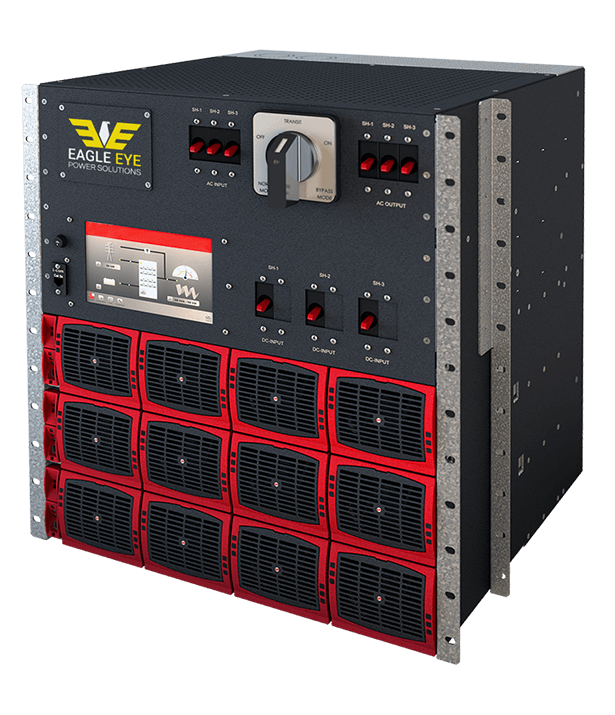

MPC Modular Inverter System
Manufacturer
Eagle Eye
Product Type
Power
Technology
Power Systems
PRODUCT DESCRIPTION
The MPC is a readymade inverter package designed to provide a pure sine wave AC supply as a complement to any existing DC power solution. Compact, friendly plug & play installation, self-standing open relay rack ideal for low MTTR applications in power room. It can be used either to piggyback DC power sources or as fully integrated AC power system with built-in in and out protections. Thanks to TSI specifics it provides outstanding power conditioning and high-end availability.
- Ratings Input: 48VDC | Output: 120 or 120/240 or 120/208 VAC
- Power: 3 – 18 kVA
- Applicable standards IEC 61000-4 / FCC part 15 / cULus 1778 Listed / RoHS
- MTBF (each module) 240,000 hours
- Efficiency (typical): Enhanced power conversion / on line 95% / 91%
- Dielectric strength DC/AC 4,300VDC
- True redundant systems 3 disconnection levels on AC out and DC in power ports
- 4 disconnection levels on AC in port
- Vibration GR63 office vibration 0 – 100hz-0.1g
- Transport vibration 5-100Hz 0.5g 100 – 500hz-1.5g
- Drop test
- Altitude above sea level <1500m; no derating
- >1500m; 0.8% / 100m derating
- Operating temperature -20 – 40 C; -4 – 104°F for rated power
- 40 – 65°C with 2%/°C derating
- 104 – 149°F with 1%/°F derating
- Ambient / storage temp / relative humidity -40 – 70°C (-40 – 158°F)
- Relative humidity 95%, non-condensing
- Operating ambiance / ingress protection Free from dust and corrosive materials / NEMA 1
- Material (casing) Coated steel-ALU ZINC
- Permanent AC to AC double conversion
- Great disturbance rejection rate
- Redundant AC & DC input sources
- Source changeover not visible by the load
- Highly efficient energy conversion
- Preserve battery life expectancy
- Compact footprint
- Operates until 65°C (de-rating may apply)
- Can be provided with 120 VAC, 120/240 VAC and 120/208 VAC system configurations
