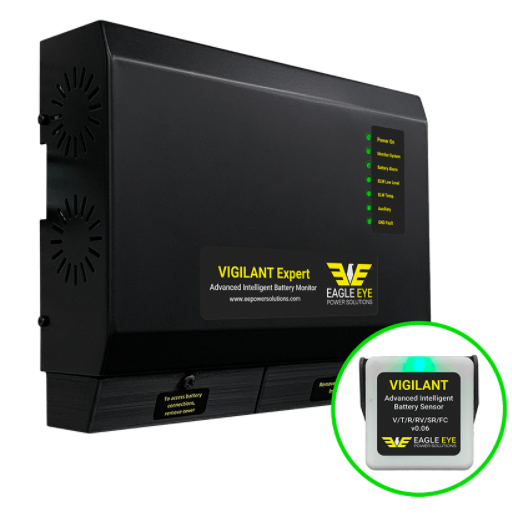

Vigilant Next Generation Battery Monitoring
Eagle Eye
Monitoring
PRODUCT DESCRIPTION
The ground-breaking Vigilant Battery Management System (BMS) with Advanced Multi-Function (AMF) sensors employs several new battery parameters to predict battery condition. Included in these critical parameters are Cell Condition, Battery State of Health, and Battery (at) Risk Factor. These new features are made possible by machine learning algorithms built into the Vigilant.
The following key battery parameters are monitored and recorded by the Vigilant: string voltage, float current, cell voltage, cell resistance, terminal & connection resistance, cell & ambient temperature, dc ground fault, and electrolyte level.
- Working Voltage 0.05 – 18.5VDC
- Voltage Resolution ± 1mV
- Post Temperature Resolution ± 1ºC
- Cell Resistance Resolution ± 7μΩ
- Strap Resistance Resolution At 100μΩ strap r: ± 2μΩ
- Float Current Resolution At 100μΩ strap r: ± 1mA
- Charge/Discharge Current Max 800μΩ strap r: ± 0.1%
- Max 400μΩ strap r: ± 0.1%
- Range: 2,000A
- Electrical Supply (from DC supply) 36 – 72VDC, 90 – 300VDC, 280 – 580VDC
- Other Power Options 24V mains supply
- System Internal Power via comms system
- Operating Power (from charger) @ 60 cells: 25W
- Operating Temp Range -4 – 70 ºC (25 – 158ºF)
- Isolation I/P to O/P 1000VDC
- Test current @ 2.5V 20A
- Onboard Storage SSD
- Memory Capacity 20 years of battery data average, expandable for larger systems
- Local Data Download Via USB port
- External Protocols Modbus TCP/IP, DNP3
- Network Interface RJ45 Ethernet
- Dimensions (L x W x H) Monitor: 50 x 50 x 25 mm (2 x 2 x 1 in.)
- Sensor: 242 x 200 x 65 mm (9.5 x 8 x 2.6 in)
- Certification CE
