Hydrogen Gas Detector Remote Mimic Panel

Product Type
Gas Detection Equipment

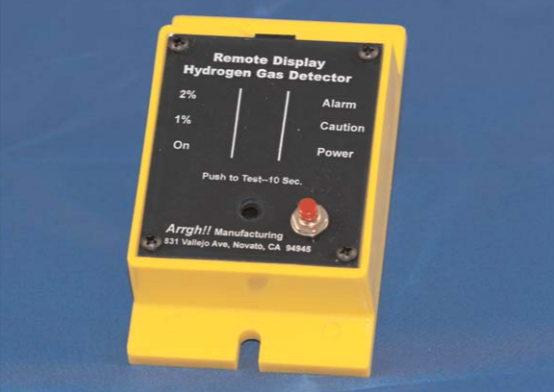

The Mimic Panel is a small monitor box that duplicates the LED indicator lights, the audible warning buzzer, and the push-to-test button on the HGD series hydrogen gas detectors. The Mimic Panel is connected to the remote hydrogen gas detectors with standard crossover six-wire telephone cables. See below. 1) Small footprint, easy installation. 2) May be located up to 1000’ away 3) Powered by the remote Hydrogen Gas Detectors The green LED indicates the HGD is powered up, the yellow LED lights up when 1% hydrogen is detected. The red LED lights and the warning buzzer comes on at 2% hydrogen.

  • Small Size: 3” x 5”
  • Available for 1, 2, or 3 detectors
  • Push to Test button
  • Three LED status indicators
  • 80db warning buzzer
  • 5 Year Warranty
